Product Description
STANDARD FEATURES
- Factory Authorized Startup
- Energy Star® Certified
- Exclusive Dual Rinse Technology
- All-Purpose 29” Wide Peg Belt
- Dish Capacities up to 15,027 dishes per hour (NSF Listed)
- Automatic Tank Fill
- Chemical Dispensing Connection Provisions
- Choice Of Tank Heat: electric, steam coils or direct steam injectors
- Stainless Steel Booster Heater
- Common Hot Water Connection
- Common Drain Connection
- Common Electrical Connection (separate connection required for optional electric booster and electric blower-dryer)
- Single-Point Condensate Connection (steam heated machines, except for blower-dryer)
- One Piece Stainless Steel Wash/Rinse Manifolds easy removal
- Door Safety Switch
- Electric Eye Energy Sentinel (idle pump shutoff)
- Heavy Gauge Stainless Steel Construction
- Low Water Tank Heat Protection
- Push Button Start/Stop Station – load end
- Recirculating Flushing Nozzles – load end with prewash
- Conveyor Shutoff Shelf – unload end
- Stainless Steel Enclosure Panels – front and ends
- Vent Fan Control Connection Provision
- Hinged Insulated Access Doors
Limited Warranty: 1 Year Parts & Labour
- Tank heat: electric, steam coil or steam injectors
- Heat Recovery
- Boosters heaters - stainless steel (completely interplumbed, controls are inter-wired)
- Electric: ( 40°F rise or 70°F rise)
- Steam: ( 40°F rise or 70°F rise)
- 48” Blower Dryer, electric or steam (add 4’ to overall length)
- Belts: standard peg belt; flat belt; thermal tray belt; silverware belt; belts with upper cross rods, and other select combination belts
- Start/Stop station, unload end
- Back panels, stainless steel
- Cold water thermostat (for prewash)
- External scrap bucket on wash tank
- Insulated hoods
- Motor pumps, 2 or 3 HP optional in lieu of 1 HP on prewash
- Bumper rail, machine mounted
- Steam pressure regulating valve (unmounted)
- Drain water tempering kit (mounted)
- Hinged Insulated on life out doors
- Shock arrestor (water)
- Champion ION scale prevention system
- Water softener
Product Videos
Custom Field

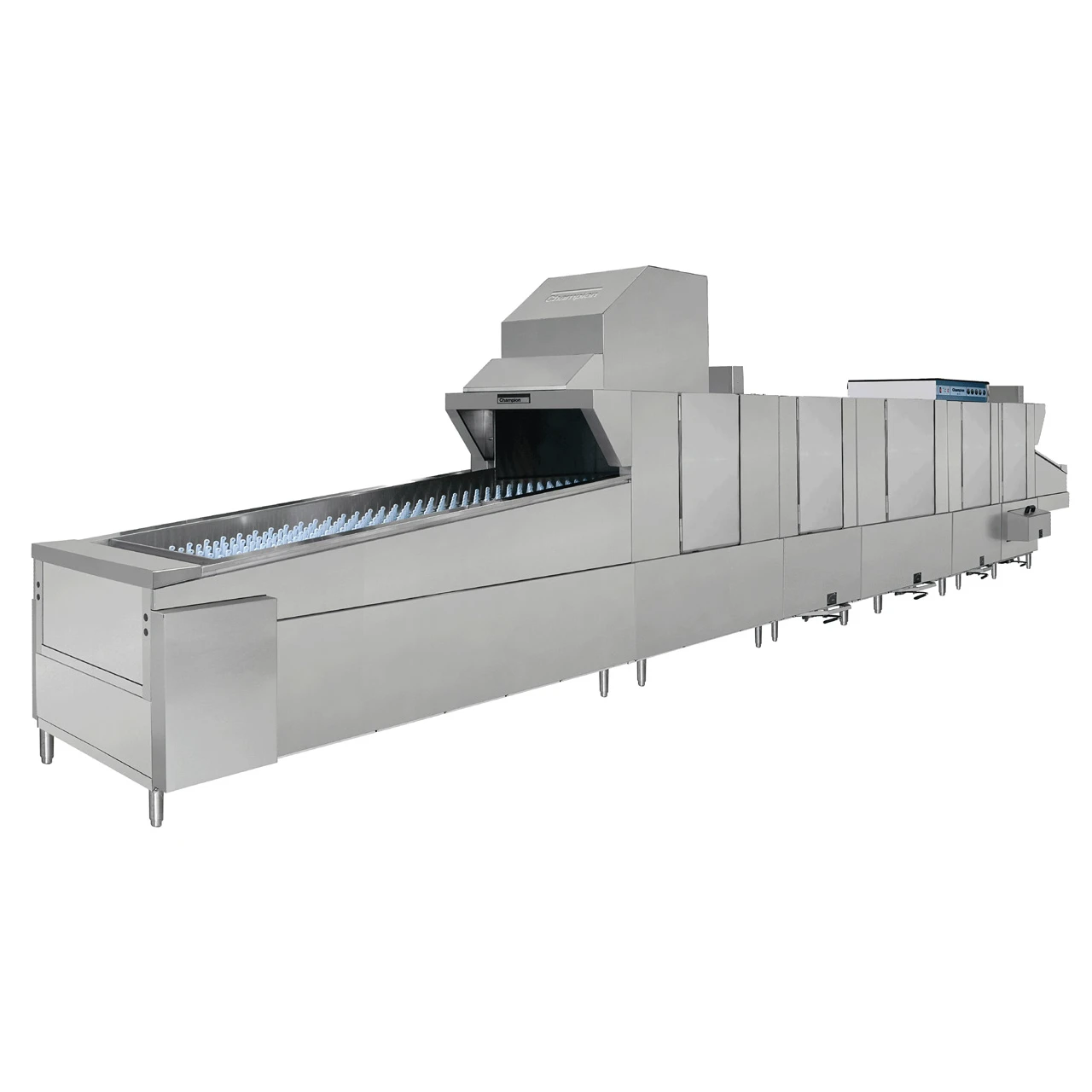

Model # EUCCW-FLIGHT
Recommended Use Large-Scale Foodservice Operations (i.e. hopsitals over 250 beds, higher education, catering, etc.)
Capacity per Hour 15027 dishes
Energy Star Certified Yes
Resource - PDF - Spec Sheet https://store-txp4k4lqe2.mybigcommerce.com/content/spec-sheets/Flight-Machines/EUCCW-Pro-Flight-Series.pdf
Resource - PDF - Manual https://store-txp4k4lqe2.mybigcommerce.com/content/current-production-manuals/Flight-Machines/E-Series_Flight_114254.pdf
Resource - PDF - Operation Guide https://store-txp4k4lqe2.mybigcommerce.com/content/cleaning-operation-guides/Flight-Machines/HMI_FLT_OPS_117171.pdf
Resource - PDF - Installation Guide https://store-txp4k4lqe2.mybigcommerce.com/content/cleaning-operation-guides/Flight-Machines/PRO_Flight_Install_117170.pdf
Resource - PDF - Dryer Spec Sheet https://store-txp4k4lqe2.mybigcommerce.com/content/spec-sheets/Flight-Machines/EBD.pdf
Additional Information Limited Warranty: 1 Year Parts & Labour
