Product Description
STANDARD FEATURES
- NEW “Shear Energy” – a reduction in energy requirements while maximizing performance!
- NEW “Multi-Power” – includes “Multi-Volt” and “Multi-Phase”. Allows for infield conversion to 208-240 volt and/or single to three phase with ease.
- StemSure™ – Soft start to protect glasses and dishes from chipping and breaking
- Rinse Sentry – extends the cycle time to ensure 180°F final rinse.
- Built-in electric booster for 180°F/82°C final rinse water (70°F/39°C rise)
- Pumped drain
- Low-water tank heat protection
- Detergent and rinse aid pumps
- Quiet double-wall construction
- Door safety switch
- Independent stainless steel interchangeable upper and lower wash and rinse arms
- Top mounted slide-out controls
- Stainless steel top and side panels
- 90-second total cycle time
- Extended wash for difficult ware cleaning & de-liming
- Automatic drain cycle
- 1 HP motor
- Advanced Digital Temperature Monitoring
- Stainless steel construction
- NSF Certified Pot and Pan Cycle in extended wash cycle
Limited Warranty: 1 Year Parts & Labour
- Additional Dish Racks
- 17" Stand Stainless Steel
- 8" Stand Stainless Steel
- 9kW High Speed Rise Booster
- 3 Phase Connection (prewired at factory)
- 1" Roller Kit (includes 4 casters)
- Power Cord Kit
- NEW Champion ION Scale Prevention System
- Drain Water Tempering Kit (unmounted)
Product Videos
Custom Field

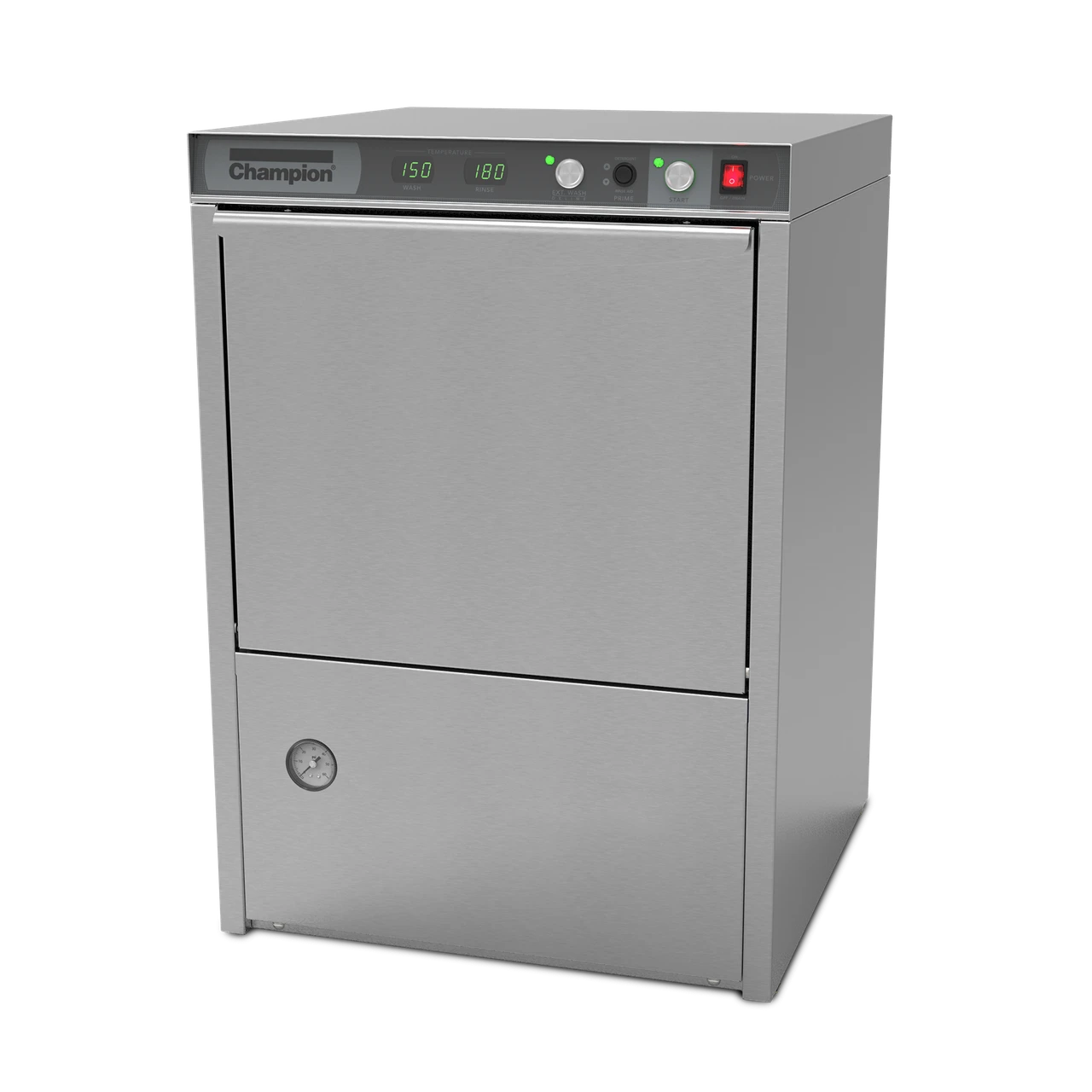

Model # UH230B
Exterior Dimensions 33-3/4" H x 24" W x 25" D
Recommended Use Light Medium Soil - up to 50 seats
Temperature High Temp
Capacity per Hour 30 racks (fast)
Voltage 208-240
Resource - PDF - Spec Sheet https://store-txp4k4lqe2.mybigcommerce.com/content/spec-sheets/Undercounters/UH230B.pdf
Resource - PDF - Manual https://store-txp4k4lqe2.mybigcommerce.com/content/current-production-manuals/Undercounters/Install_Ops_UHM4.2_115440.pdf
Resource - PDF - Cleaning Guide https://store-txp4k4lqe2.mybigcommerce.com/content/cleaning-operation-guides/Undercounters/Undercounters_CLEANING.pdf
Resource - PDF - Parts Manual https://store-txp4k4lqe2.mybigcommerce.com/content/current-production-manuals/Undercounters/Parts_UHM4.2_115440.pdf
Resource - PDF - Installation Guide https://store-txp4k4lqe2.mybigcommerce.com/content/cleaning-operation-guides/Undercounters/Undercounters_INSTALLATION.pdf
Resource - PDF - Brochure https://store-txp4k4lqe2.mybigcommerce.com/content/brochures/Champion_Powder_Coated_Dishwashers_Brochure_2024.pdf
Additional Information Limited Warranty: 1 Year Parts & Labour
Resource - Revit https://store-txp4k4lqe2.mybigcommerce.com/content/CAD-Revit/Undercounters/UH230B/UH230B.rfa
Resource - Auto CAD - Front https://store-txp4k4lqe2.mybigcommerce.com/content/CAD-Revit/Undercounters/UH230B/UH230B-Front.dwg
Resource - Auto CAD - Plan https://store-txp4k4lqe2.mybigcommerce.com/content/CAD-Revit/Undercounters/UH230B/UH230B-Plan.dwg
Resource - Auto CAD - Side https://store-txp4k4lqe2.mybigcommerce.com/content/CAD-Revit/Undercounters/UH230B/UH230B-Side.dwg
