Product Description
CABINET CONSTRUCTION
- Exclusive Field Convertible to single or three phase, 208 or 240 volt, corner or straight through operation
- Built-In Booster Configured For 70° Rise
- Rinse Sentry ensures 180°F final rinse
- Auto Start starts unit when doors are closed
- High Temperature
- Single Point Connection
- High Efficiency 1 HP Pump
- 55 Racks Per Hour
- Self Draining Pump
- Automatic Tank Fill
- Detergent/Chemical Connections
- Interchangeable Upper And Lower Arm
- Top Mounted Splash Proof Controls
- Automatic Drain Valve
- Vent Fan Control
- Pressure Regulating Valve
- Low Water Tank Heat Protection
Limited Warranty: 1 Year Parts & Labour
- Drain water tempering kit (mounted)
- Corner operation splash baffle
- Chmapion ION scale prevention system
- Built-in booster configured to ensure 180° rinse
- Water hammer kit (unmounted)
- Pumped drain
- Racks Peg & Flat additional
Product Videos
Custom Field

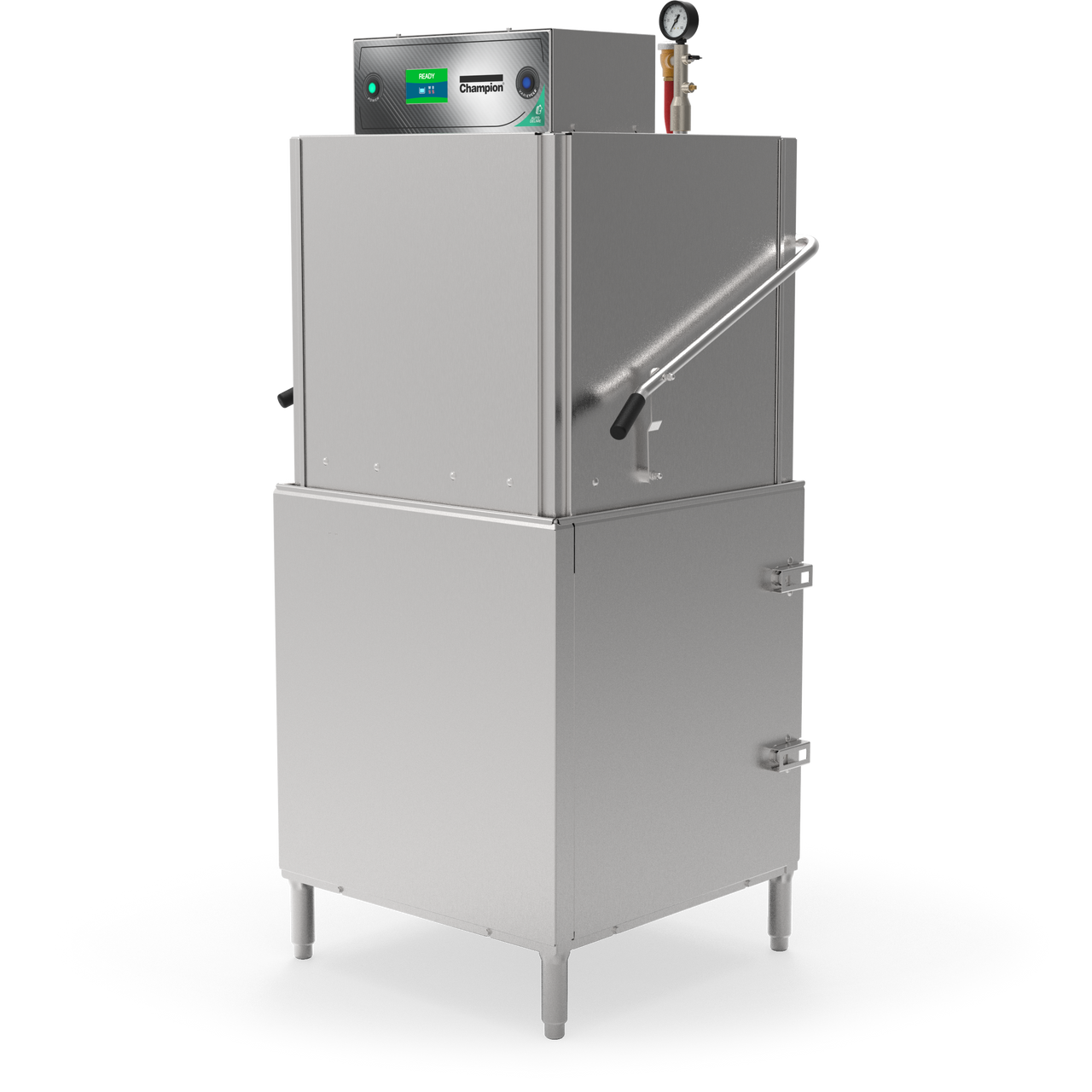

Model # DH3000
Type Standard
Exterior Dimensions 63-3/4" H x 31-7/8" W x 28-3/8" D
Recommended Use Establishments up to 50 seats
Temperature High Temp
Capacity per Hour 55 racks (1HP Motor)
Voltage 208-260
Resource - PDF - Spec Sheet https://store-txp4k4lqe2.mybigcommerce.com/content/spec-sheets/Door-Type/DH3000.pdf
Resource - PDF - Manual https://store-txp4k4lqe2.mybigcommerce.com/content/current-production-manuals/Door-Type/DH3000_Install_Ops_Clean_Parts_117869.pdf
Resource - PDF - Operation Guide https://store-txp4k4lqe2.mybigcommerce.com/content/cleaning-operation-guides/Door-Type/DH3000-Op-and-Cleaning-Instructions.pdf
Resource - PDF - Drain Tempering Kit https://store-txp4k4lqe2.mybigcommerce.com/content/cleaning-operation-guides/Door-Type/Kit_117084_DWT_Install_117095.pdf
Resource - PDF - Cleaning & Ops Guide [French] https://store-txp4k4lqe2.mybigcommerce.com/content/current-production-manuals/Door-Type/DH3000_Install_Ops_Clean_Parts_French_117949.pdf
Additional Information Limited Warranty: 1 Year Parts & Labour
